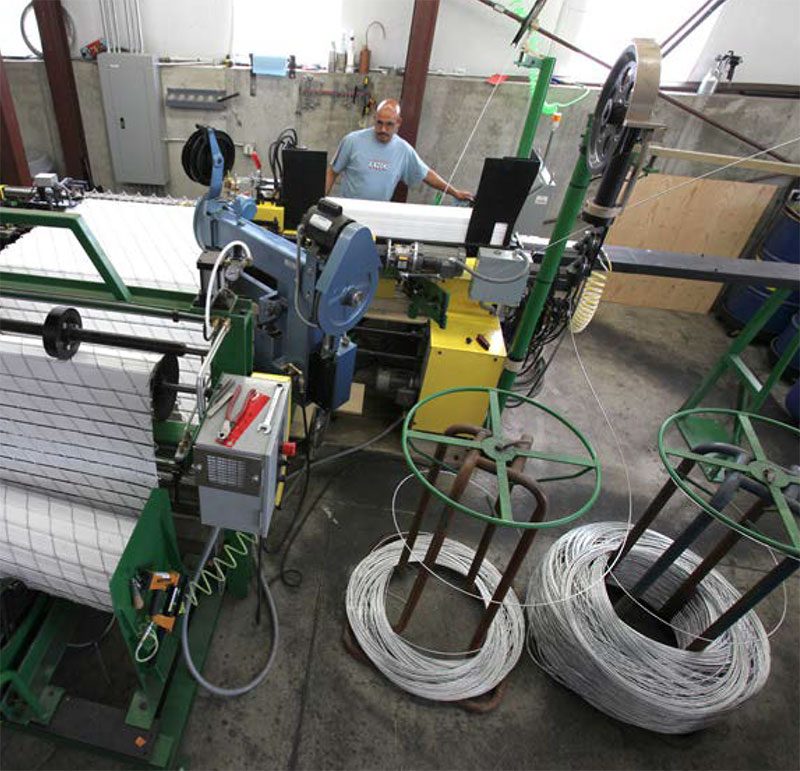

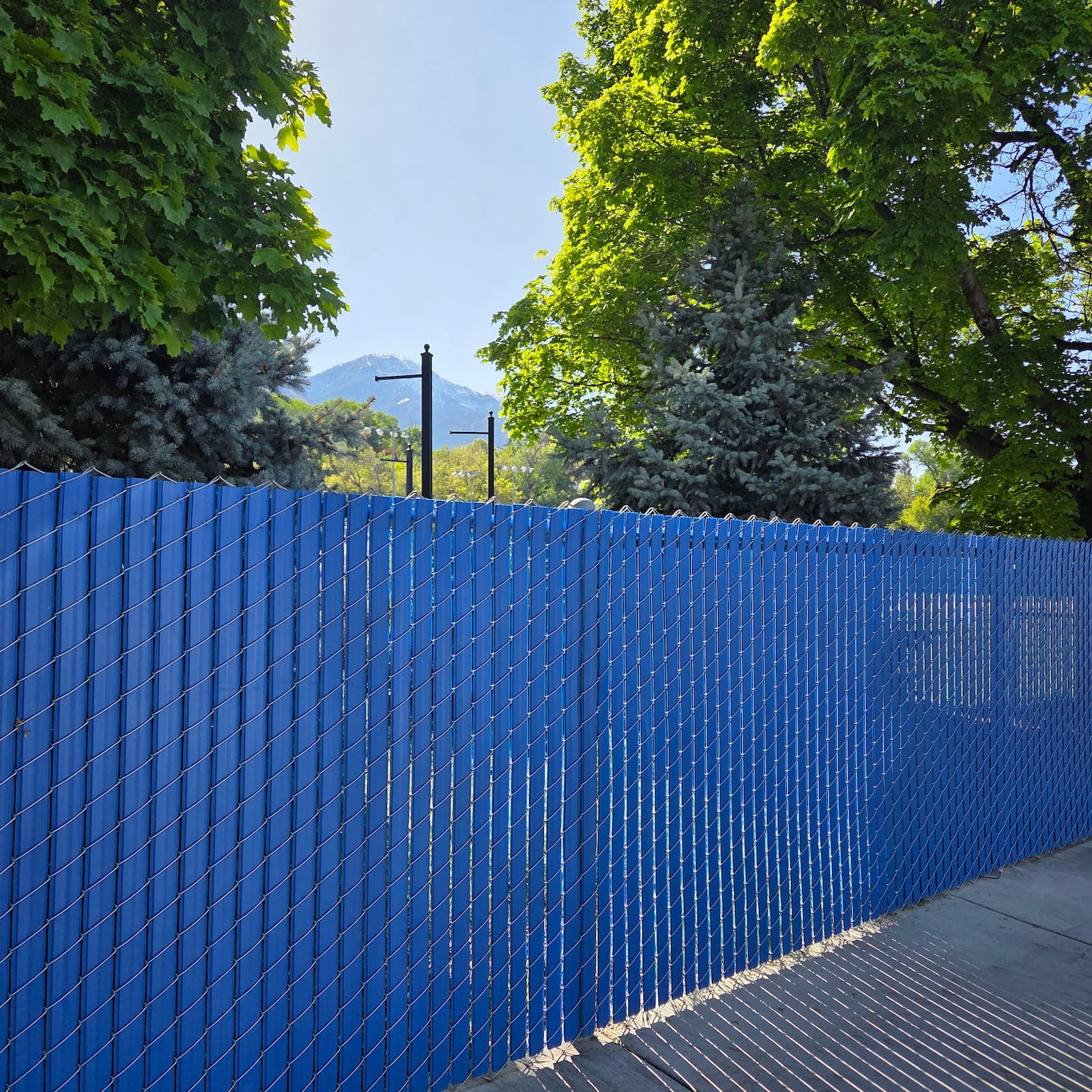

The MaxLink Plus® system is an evolution from the MaxLink Industrial® system, for those situations where a greater degree of privacy or screening is desired. Much like the MaxLink Industrial® system, this product utilizes the same unique and efficient system of combining the chain link wire and the Slat Warehouse Max 2900 slat as a complete package – no need for using labor to stretch the wire and then hand-insert each individual slat. Stretch the wire… and the job is done.Using a state-of-the-art high-speed Bergandi weaving/insertion machine, Slat Warehouse can weave the specified wire in a 3.5” x 5” mesh, then mechanically insert and secure each slat to the wire with a stainless-steel staple, which holds the slat level and secure for years to come.

The slat used in the MaxLink Plus® system is a double-wall, flat tubular extrusion 2.880” wide with two internal support legs for strength and structure, and the addition of specifically angled ‘fins’ on each side, designed to mold around the chain link knuckle and give up to 98% sight blockage. The slat used in the MaxLink Plus® system is also formulated using High Density Polyethylene (HDPE), combined with additives to ensure color and functionality for many years of protection from exposure to the ultra-violet impact of the sun.


The MaxLink Plus® is available in 9 standard colors:




* Color representation on the website varies by device. Please refer to actual color samples for final matching.
* Custom colors are available on request, and are subject to minimum order quantity requirements


Heights – Available in standard heights of 3’, 4’, 5’, 6’, 7’, 8’, 10’, 12’
Galvanized Wire – MaxLink Plus® system can be produced using three options of GBW (Galvanized Before Weaving) wire. All of our galvanized wire is manufactured with a 1.2 oz. (per square foot) of a protective zinc coating.

9 Guage
10 Guage
11 Guage


Vinyl Coated Wire The MaxLink Plus® system can also be woven into 7 different wire colors in multiple wire sizes.


Vinyl Coated Wire Thickness Options
9 Gauge Finish
10 Gauge Core – Class 2B
8 Gauge Finish
9 Gauge Core – Class 2B

Packaging – The MaxLink Plus® system is produced in a minimum increment of 25’ rolls, and 5’ increments thereafter. Up to 9 rolls can be packaged per pallet.



Warranty – For details on the limited 15-year warranty for the MaxLink Plus® system, please contact Slat Warehouse directly by phone.
